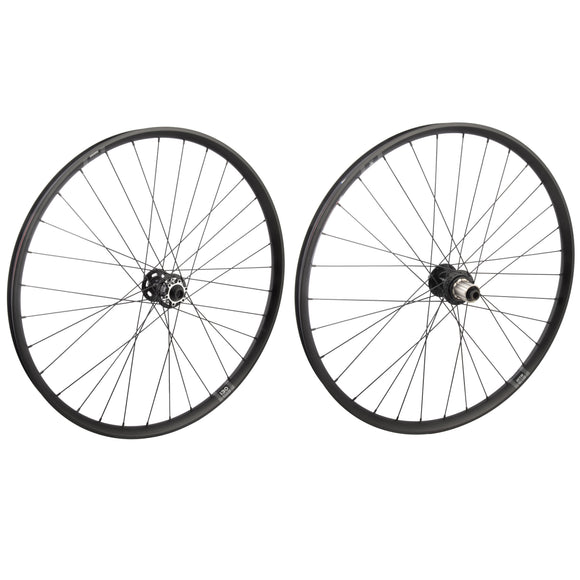

WTB ST TCS 2.0 i30 CVX Rims
- TCS rims are tubeless-ready when paired with tubeless tape and valves.
- CVX technology strengthens the spoke bed without increasing weight
- Beadlock creates a precise fit between the tire and rim
- Double wall with I-Beam adds strength to the inner rim cavity
- Spoke holes are drilled at precise angles to align a nipple with spoke hole on the hub.
- Designed for Disc brakes only
- 30mm inside width
- Presta valve drilled
- Black
- Includes TCS 2.0 Rim Solid Strips
- 35mm tubeless tape is recommended for i30 rims
- Compatible with 38mm tires up to 71mm with optimal performance between 50mm and 65mm wide.
Patented CVX technology strengthens the spoke bed without increasing weight, by thickening material where it’s needed and removing where it’s not. The unique geometry also increases contact area between the nipple head and rim to better distribute load and reduce stress at the spoke hole.
Origin8 MT-3100 Front Hub
- 15x100 standard hub spacing
- Sealed Cartridge Bearings
- 6 Bolt Disc mount standard spacing
- Aluminum alloy shell
- Black
- 32 Hole
- Convertible to 9x100 Quick Release with part: 371741
Origin8 MT-3200.2 Rear Hub
- 12x148 BOOST hub spacing
- 1 piece forged and CNC machined alloy body
- Chromoly, 4-pawl driver body
- 7075AL machined axle
- Sealed bearings
- Double contact seals
- Accepts traditional HG type mountain bike cassettes, including 11-52 12-speed. Does not fit any cassette with a 10t small cog. Does not fit MicroSpline cassettes. Does not fit 11-speed road bike cassettes.
- 6 Bolt Disc mount
- Black
- 32 Hole
Premium Sapim Leader Spokes
- Stainless steel
- 32 count
- 14g / 2.0mm
- Black
- Sapim Polyax Brass nipples
Thru Axles not included
Weights:
