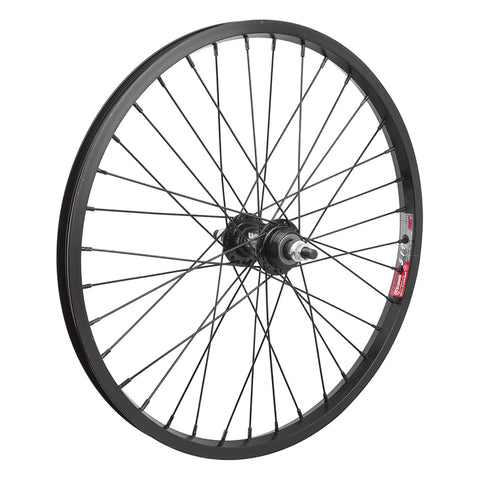

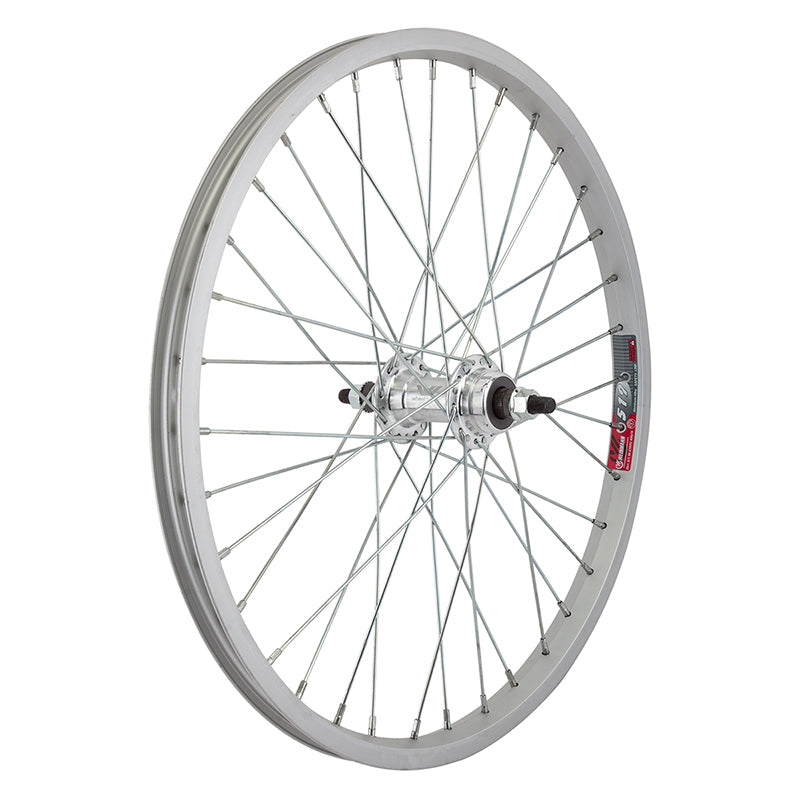

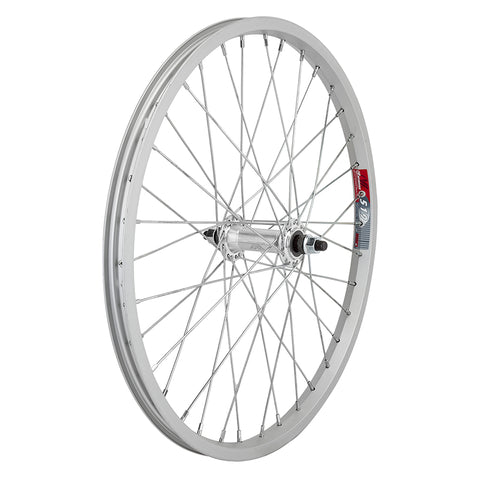

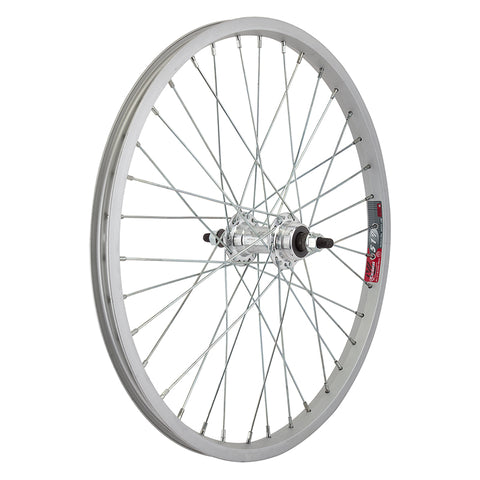

Wheelmaster 20-inch BMX Wheel 3/8" axle
Choose from Front, Rear or Wheelset
Important fit notes:
- Both front and rear wheels have 3/8" axles.
- Does not fit any bike that uses a 9t rear cog.
- Does not fit 14mm axles.
- Requires the use of a freewheel, not included.
- Threaded Standard 1.37" x 24tpi accepts 16t freewheels and larger
- Can not be fitted with coaster brake for backpedal braking.
- DOES NOT FIT 20x1-3/8 does not fit ISO 451
YOU CHOOSE COLOR:
Black or Silver
YOU CHOOSE POSITION:

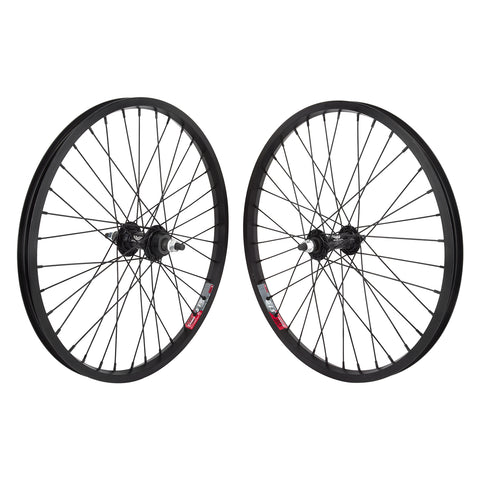

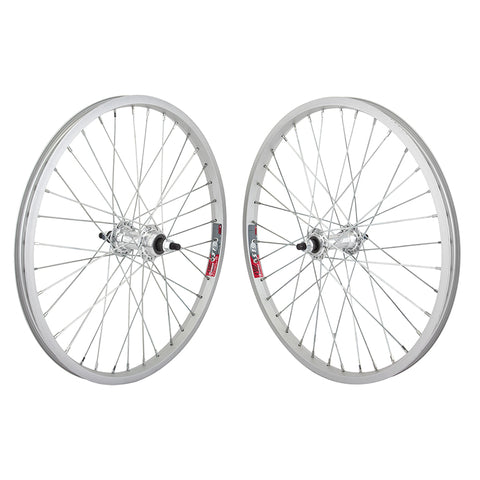

Front or Rear or Front & Rear Wheelset
Weinmann 519 Rims:
- Lightweight Durable Aluminum Alloy
- Designed for rim brakes
- Single wall Rim
- Accepts 20" tire diameter (ISO 406)
- 19mm inside width
- 24mm outside width
- Schrader valve drilled
Wheelmaster AB-1000 Hub:
- Thread on freewheel compatible rear hub
- Rear Hub: 1.37x24 tpi right hand freewheel threading
- Loose ball bearings
- 100mm FRONT dropout spacing
- 140mm total FRONT axle length
- 110mm REAR dropout spacing
- 155MM total REAR axle length
- Bolt on 3/8" Axle
- Axle nuts included
- 36 count
- 14g UCP
Published Weights
- Rear Wheel: 804g
- Front Wheel: 774g
Assembled in USA made with Asian sourced rims, hubs and spokes
![]() |
