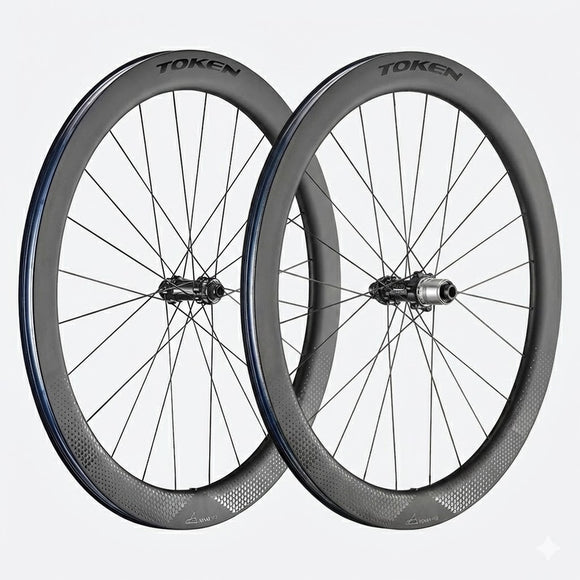

TOKEN has launched 3 all new high end carbon fiber wheelsets.
Each wheel has been meticulously developed to provide exceptional strength to weight ratio. They are ready to hit the road in disc brake version.
Konax is named after the most revered Hall of Fame IRONMAX-Hawaii KONA World Championships. This is significant in that the Konax aims to become a shining weapon on the KONA arena by creating a must use wheelset for the IRONMAX.
The Konax series comes with two editions: the KONAX PRO with a rim depth of 52mm, and the KONAX TRI that has a rim depth of 76mm. The rim height and the shape of the KONAX is the result of analysis using state of the art aerodynamic analysis software-CFD (Computational Fluid Dynamics). This enables the KONAX wheels to perfectly slice through the wind.
| Tire Type | Tubeless Ready |
|---|---|
| Weight | 659 g (f) / 803 g (r),total: 1463 g |
| Rim Diameter | 700c |
| Rim Material | Carbon Fiber |
| Rim Width (External) | 27.2 mm |
| Rim Width (Internal) | 22.6 mm |
| Rim Height | 52.3 mm |
| Nipples | Internal |
| Cassette Compatibility | SRAM XDR |
| Spoke Lacing | 2 cross (f) and 2 cross (r) |
| Spoke Count | 24 (f) and 24 (r) |
| Spoke Type | Sapim CX-RAY Straight |

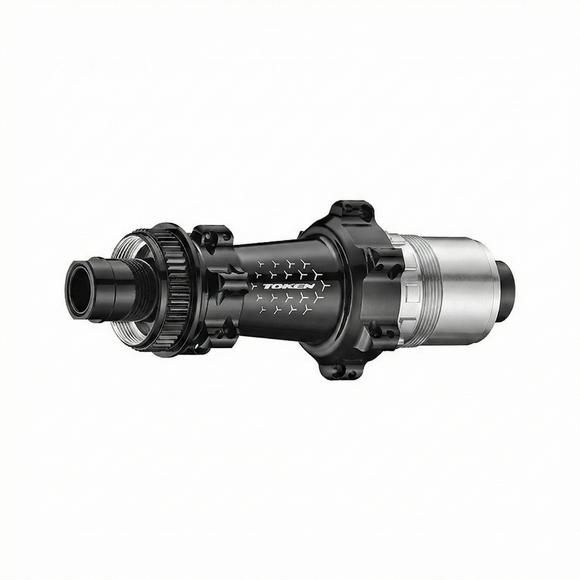

| Hub Type | D1 |
| Bearing Count | 2 (f) and 4 (r) |
| Bearing Type | TBT, Premium |
| Brake Compatibility | Center Lock |
| Spacing | Front: 9 x 100 QR and 12 x 100 mm Thru Axle Rear: 10 x 135 QR and 12 x 142 mm Thru Axle |
| Included Extras | Tubeless Valves |
