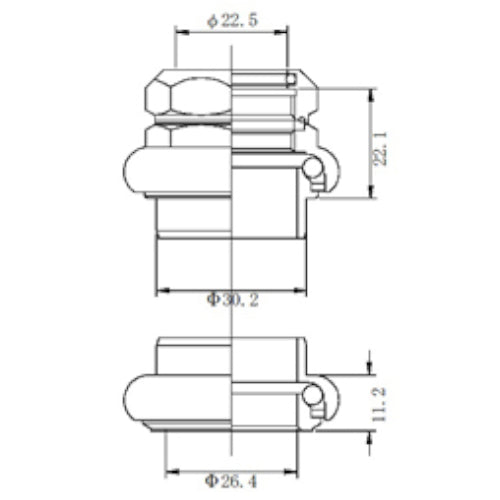

Tange Levin CDS 1" Threaded Headset 26.4/30.2

$36.50 USD $39.99 USD Save $3.49 USD

Barcode: 842802021889

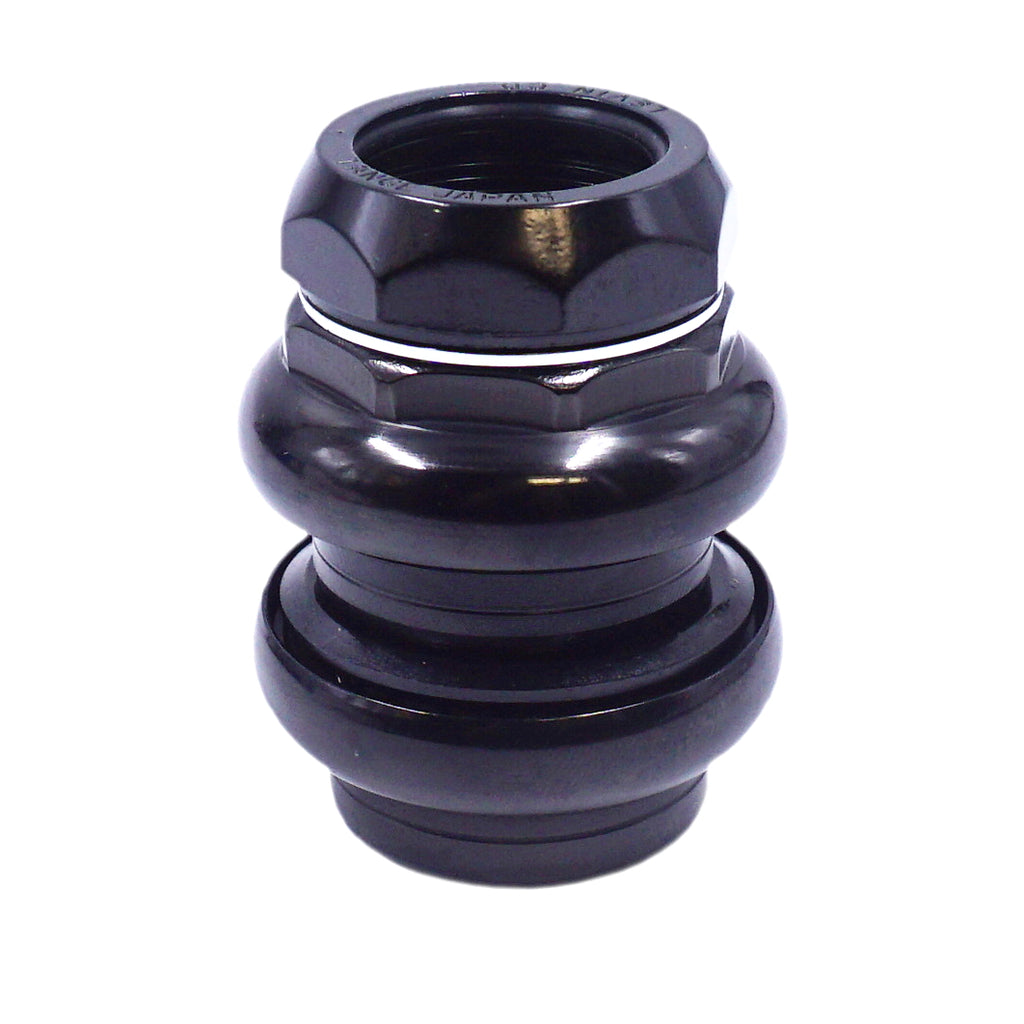

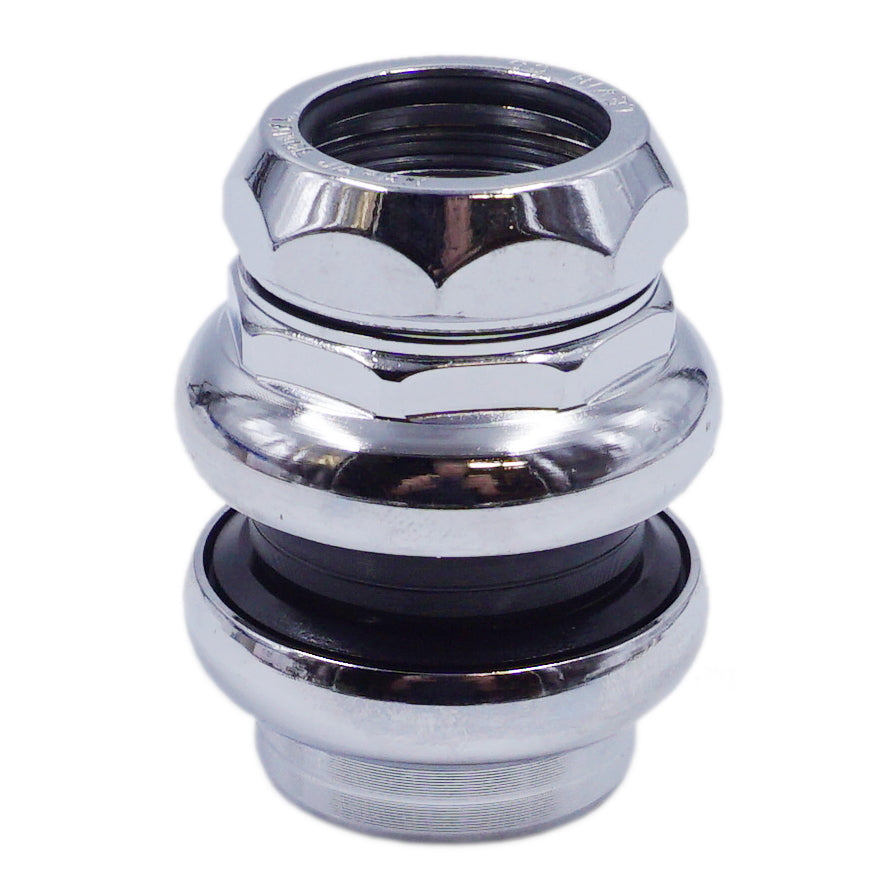

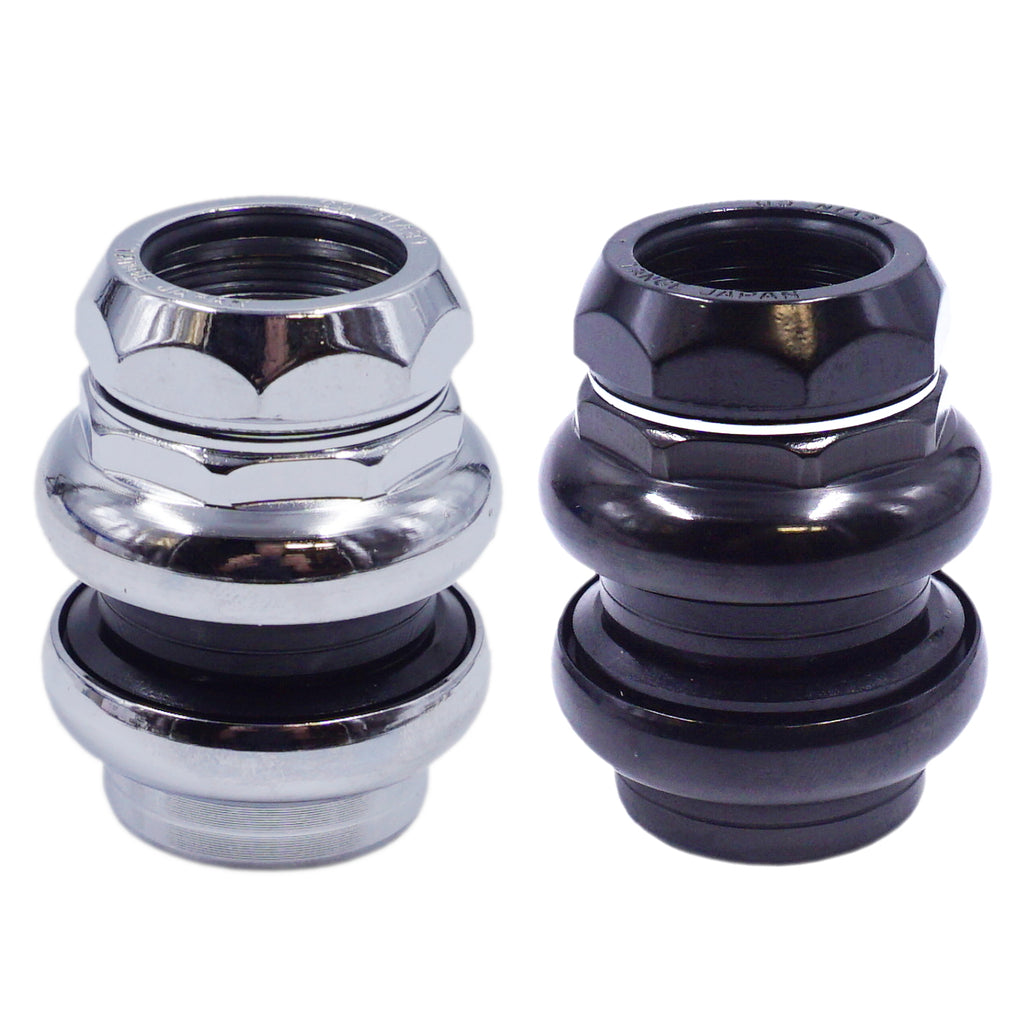

  • Color: Black or Silver
  • Top Lock Nut SS41
    • Steel
    • 10.0mm
    • 8 flats 32mm width, 4.8mm Threading, Seal ring
  • Key Washer SPCC
    • Steel
    • 2.0mm
  • Adjusting Cup SCM415
    • Cr-Mo
    • 13.5mm
    • 8 flats 32mm width, 4.5mm Threading
  • Upper Stationary Cone SCM415
    • Cr-Mo
    • 14.2mm

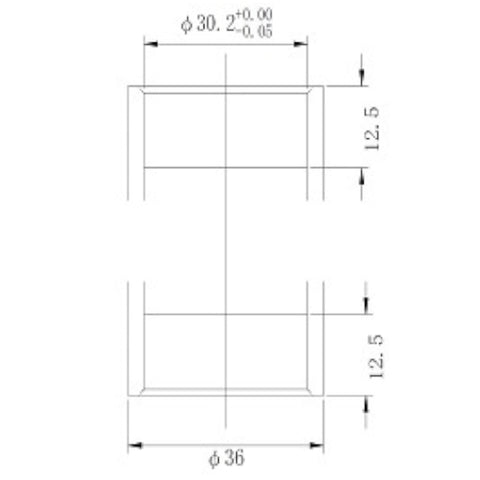

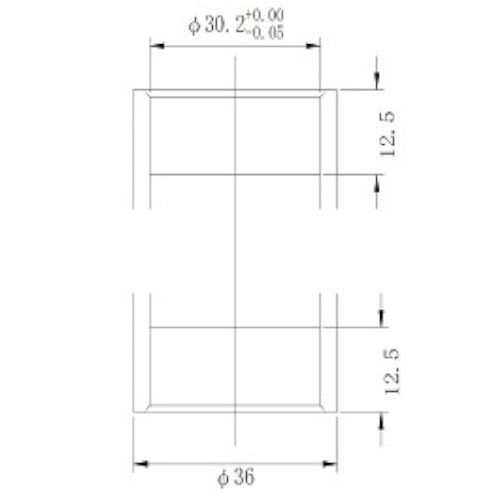

    • Insertion 30.0 +0.1 -0,  /30.2 +0.1 -0 / 8mm depth
  • Lower Stationary Cup SCM415
    • Cr-Mo
    • 16.5mm
    • Insertion 30.0 +0.1 -0,  /30.2 +0.1 -0 / 7.5mm depth
  • Crown Cone SCM415
    • Cr-Mo
    • 7.5mm
    • Insertion 27.0 +0 -0.1/ 26.4mm +0 -0.1
  • Ball Retainer x2
    • Cr-Mo
    • Balls #300
    • 5/32"x20 Balls
  • Seal Ring x2
    • Nylon 66S
