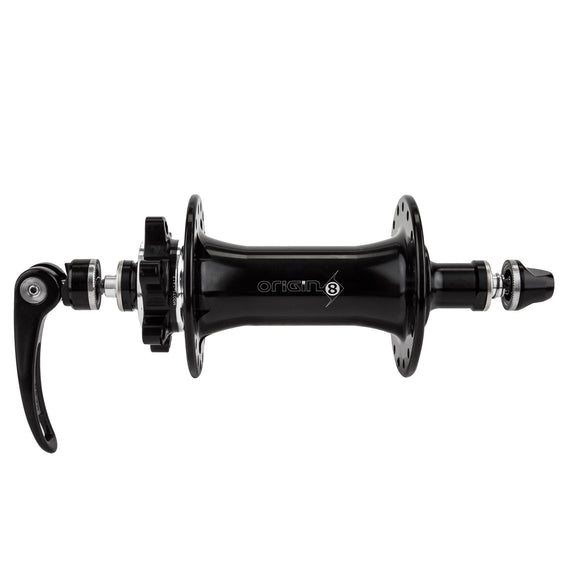

This is not a normal hub. It is for use in rear spaced fat bike forks. Seen on Gen1 Surly Pugsley with offset forks that can use a rear hub in front wheel position. It is advised to contact Surly directly to confirm compatibility for your fork. But if you can stick a rear wheel into your fork, and the disc rotor lines up with the caliper, then this is the hub for you. Also see our blog on fat bike disc spacing:
Guide to Fat Bike Front Disc Spacing: 135mm Forks, Rear Hubs, and Rotor Alignment
- Requires the use of a rear spaced disc brake mount
- Compatible with Surly 135mm forks as well as others
- Aluminum hub shell
- Sealed bearing
- 6-bolt disc mount
- Quick release skewer included
Info your wheel builder knows how to use:
- OLD 135mm
- PCD-L 58mm
- PCD-R 58mm
- LTF-L 27mm
- LTF-R 29mm
- CTF-L 40.5mm
- CTF-R 38.5mm
- Axle Length 145mm
- Hole Diameter 2.5mm
