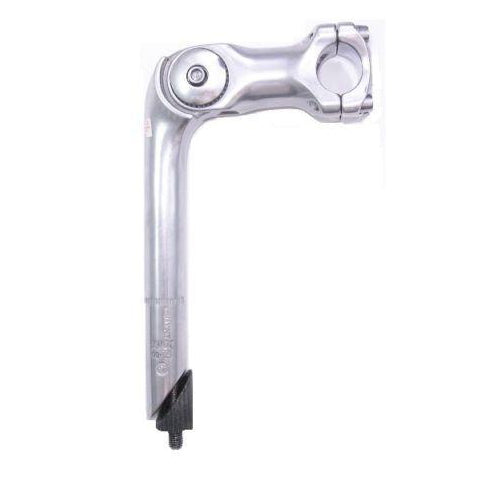

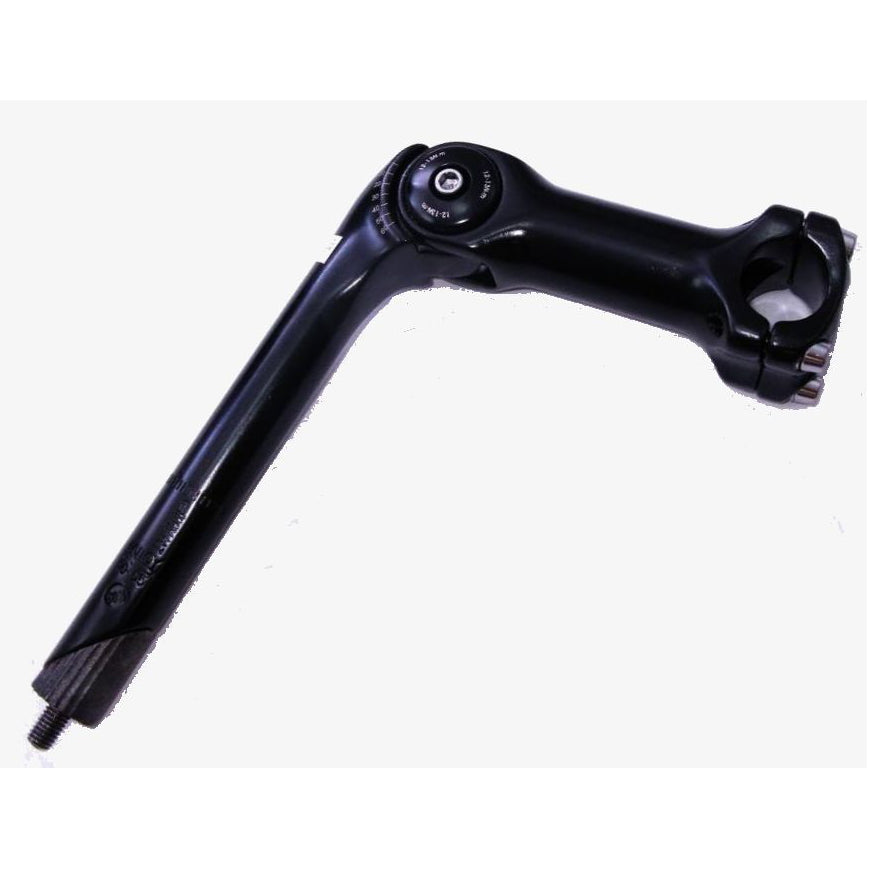

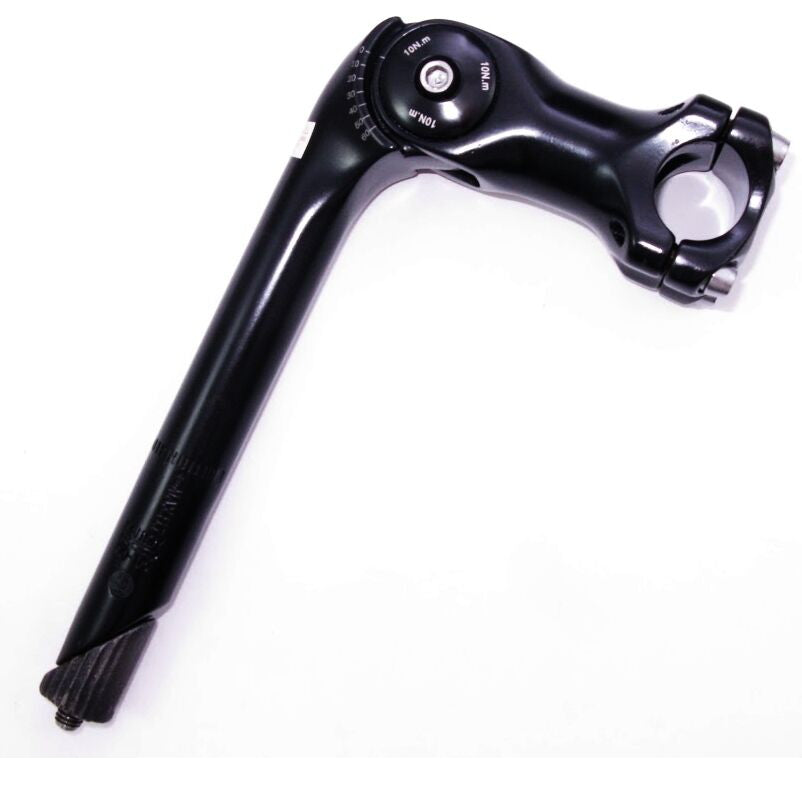

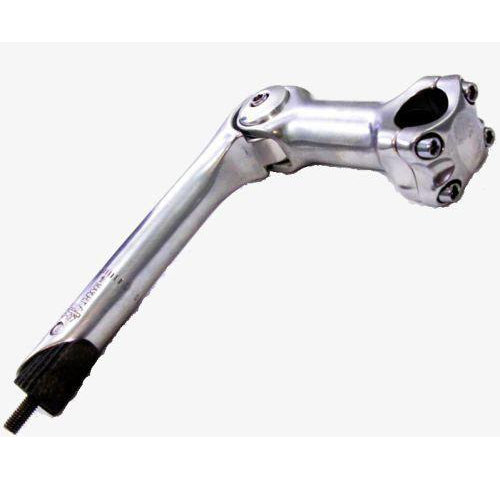

Kalloy AL-822 1-Inch (22.2) Adjustable Threaded Quill Stem
Adjustable (0-60 degrees) Quill Stem

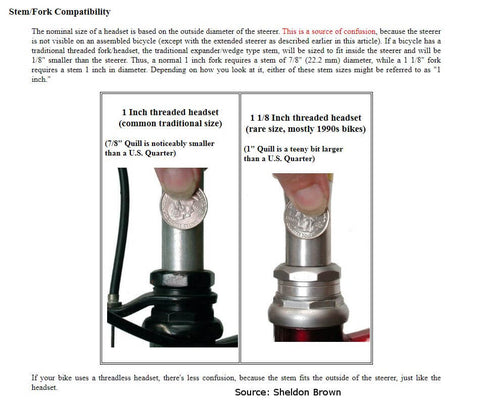

22.2mm | 7/8" (fits in a 1" diameter fork)

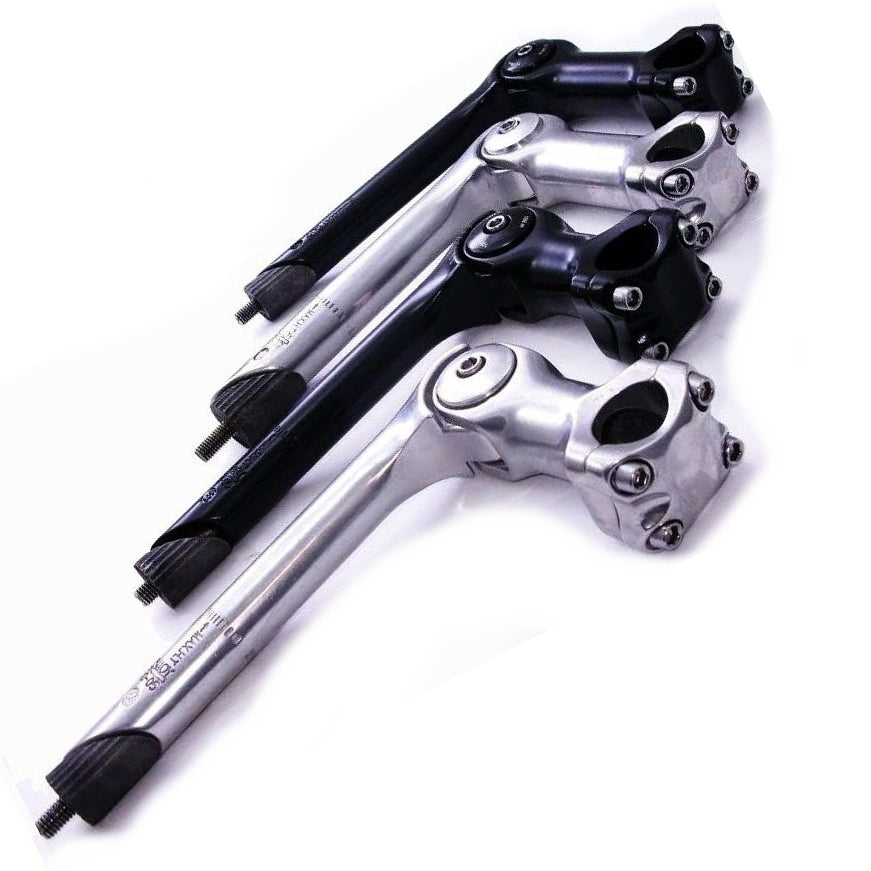

YOU CHOOSE 90mm or 110mm in either Black or Silver
Specifications:
- Works great with your hybrid or mountain bike (fits inside 1" fork steerer tube)
- Greater adjustability for comfort and height
- Easily adjusts rise from 0-60 degrees with an Allen wrench
- 22.2 mm Diameter (fits inside 1" diameter threaded fork)
- 0-60 Degrees Range of Rise
- Lengths (of reach, from the pivot point to middle of handlebars) Available: 90mm or 110mm
- Colors: Black or Silver
- Fits 25.4 handlebar diameter
- AL-822

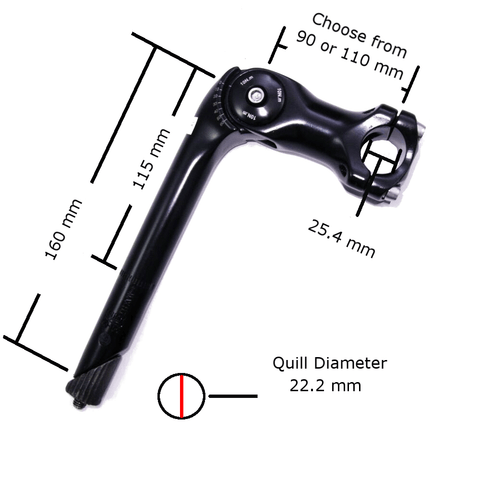

- The overall length of quill 5.5" - 3.25" of usable length
- More Secure 4 Bolt design
- Removable 4 bolt face plate makes swapping bars simple and quick
![]() |
